Products

406*282

SDF Series

SDF can be used as actor of automation system in water supply system, fire control system, water spray system and for pneumatic, hydraulic and food machine application.

contact us
  • Technical Parameters
  • Accessories
  • Download

Characteristics

- Suitable for air ,clean water ,steam and ≤4°E viscosity machine oil.

- Coil type:

  AC: 24V, 36V, 110V, 220V

  DC: 12V, 24V

- Temperature of medium -25℃ to 130℃.

- Max Working Pressure: 20bar.

- Versions with UL/CUL approval can be supplied to order.


General

SDF can be used as actor of automation system in water supply system, fire control system,

water spray system and for pneumatic, hydraulic and food machine application.

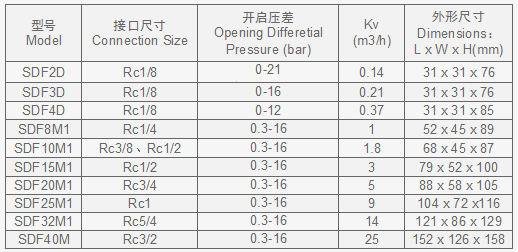

Other Technical Data



format
name
date
download
